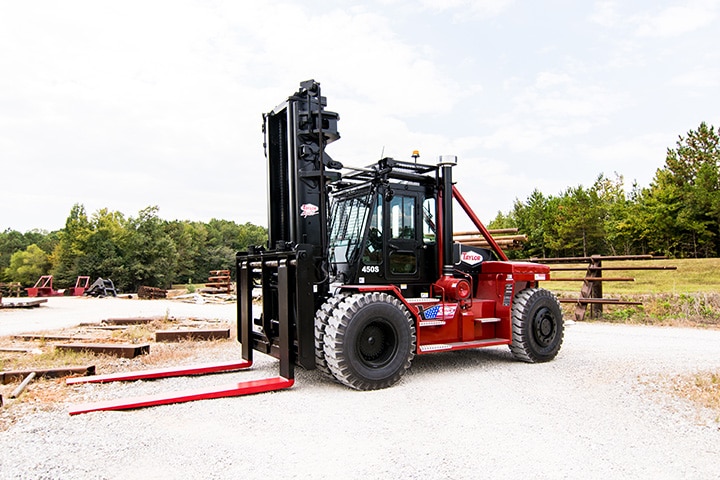

TAYLOR X-450S HEAVY DUTY FORKLIFT

STANDARD FEATURES:

• 11-ft. ULTRA-VU 2-stage mast (155-in lowered height)
• 100-in Pin-type “C” carriage
• 4.5-in X 8.5-in X 72-in pin mounted forks
• Cummins QSL9 250Hp Tier-4 final diesel engine
• Donaldson dry-type air cleaner w/safety element & restriction indicator (vertical air intake extension)
• Dana TE-17 3-speed powershift transmission
• Powertrain Protection System for engine and transmission
• Axletech PRLC1794 HD planetary drive axle with wet disc brakes
• Taylor HD-450 welded steel steer axle (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
• Solid plate steer angle limitation (more contact area than bolt heads which require adjustment)
• 14.00 X 25 – 20PR bias pneumatic drive and steer tires (high load)

CHASSIS

• All-welded steel frame with 4 Lifting Eyes (lifting eyes not designed for level pick)
• Integral counterweight
• Replaceable bolt-on steps and handrails
• Lockable Fuel Cap
• Sliding engine hood (on rollers), side service doors and removable floor panels open to expose drive train for ease of maintenance.

CAB

• Enclosed 2-door steel all-welded Cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
• 32,000 BTU heater and interior circulation fan
• Tinted glass with front and rear windshield wipers and front windshield washer
• Fully adjustable air ride swivel seat with 35° of rotation (15°/20° left-right)
• Multifunction Joystick mounted on adjustable arm rest (11-button command with integrated directional shift control)
• Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
• Operator Presence System with timed idle and neutral shutdown (5 minute default, password adjustable from 1-120 minutes by end user)
• Taylor Integrated Control System (TICS) with 7-in touch screen color display
• One-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
• Color and number coded wiring.
• Dual USB charging ports
• Hydrostatic, steer-on-demand power steering with tilt steering column

ELECTRICAL

• 24-volt electrical system with 95 amp alternator
• Dual heavy-duty batteries
• Battery disconnect/lock-out switch
• Circuit breakers with heavy duty connectors (no automotive type fuses)
• Breaker reset switches
• Key-type anti-restart ignition switch
• Dual electric trumpet horns (116 dBA)
• Keyswitch-actuated amber strobe light
• Forward and reverse-actuated warning alarms
• (4) forward facing LED work lights (cab mounted)
• (2) rear facing LED work lights (“A” pillar mounted)
• (2) LED work lights (mast mounted)

VIP

• Operators Guide
• Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
• Safety Check Manual and Video
